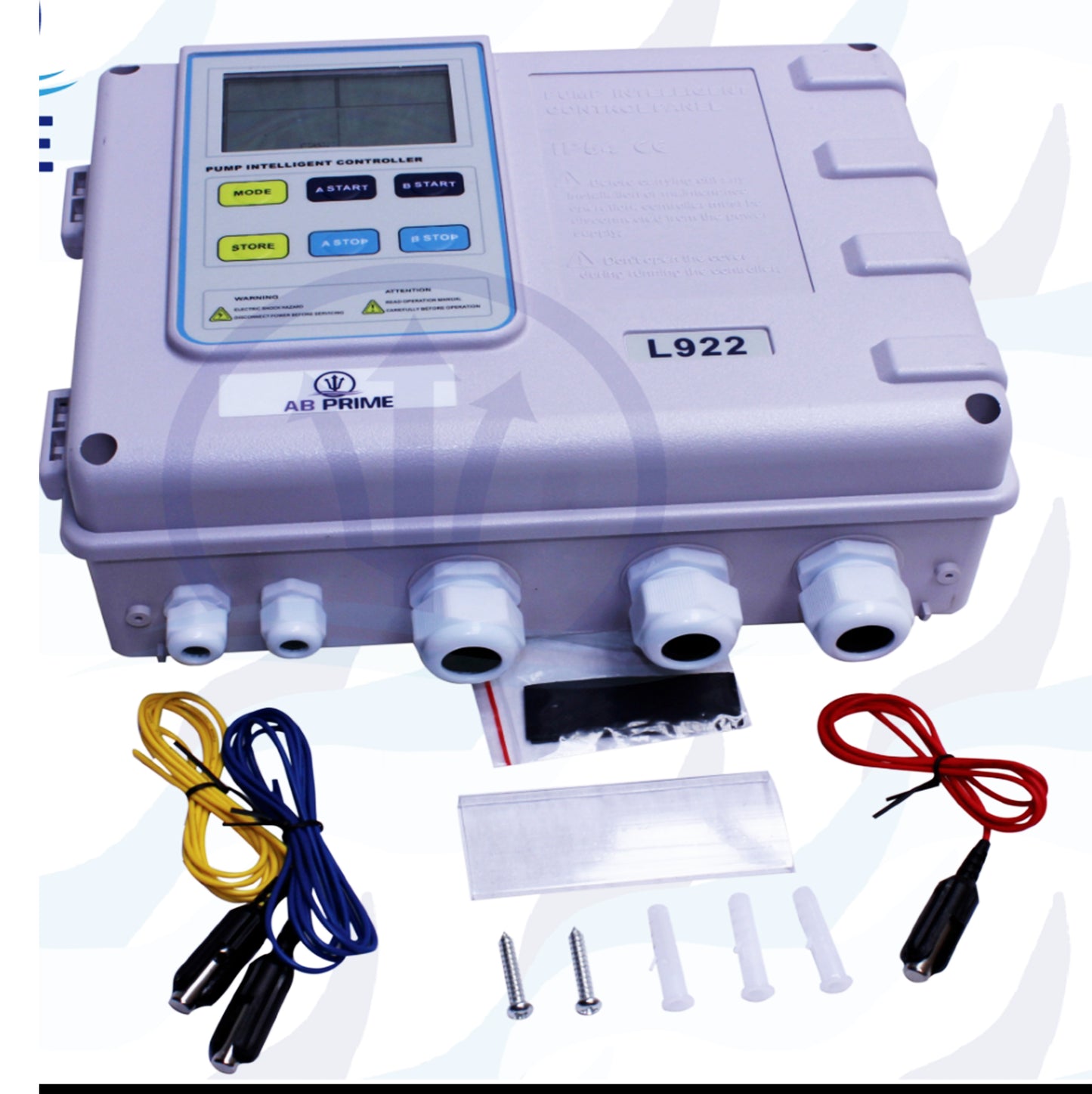

5.5–7.5KW Electronic Control Panel

5.5–7.5KW Electronic Control Panel

The 5.5–7.5KW Electronic Control Panel is a critical safeguard for your submersible or surface water pump investment. Operating on a 380V–415V three-phase supply, this smart controller monitors your pump's health in real-time, preventing expensive motor burnouts caused by power fluctuations or water shortages.

Unlike basic switchboxes, this electronic panel features a high-definition LCD display that provides live readings of voltage, current (Amps), and power factor. It is equipped with sensor-free dry-run protection, which intelligently detects when the water level has dropped to a dangerous point by monitoring the motor’s load—instantly shutting down the system to prevent mechanical damage. With its Auto-Manual-Off selector and programmable timers

Key Features & Specifications

• Power Rating: Supports motors from 5.5KW (7.5HP) to 7.5KW (10HP).
• Voltage: 380V – 415V AC, Three Phase (50Hz/60Hz).
• Protection Suite: * Dry-Run Protection: Stops the pump if it runs without water (sensor-free or probe-based).
• Phase Failure & Sequence: Protects against "single-phasing" and incorrect rotation.
• Overload/Underload: Digital calibration to match your pump’s specific current limits.
• Over/Under Voltage: Safeguards against surges and brownouts.
• Control Interface: Backlit LCD display with simple push-button calibration and fault history logging.
• Working Modes: Supports float switches, pressure switches, and manual operation.
• Durability: Housed in a robust IP22 or IP54 rated enclosure (depending on the specific model) for dust and splash resistance.
• Intelligent Restart: Programmable auto-recovery time after a dry-run trip or power restoration.
