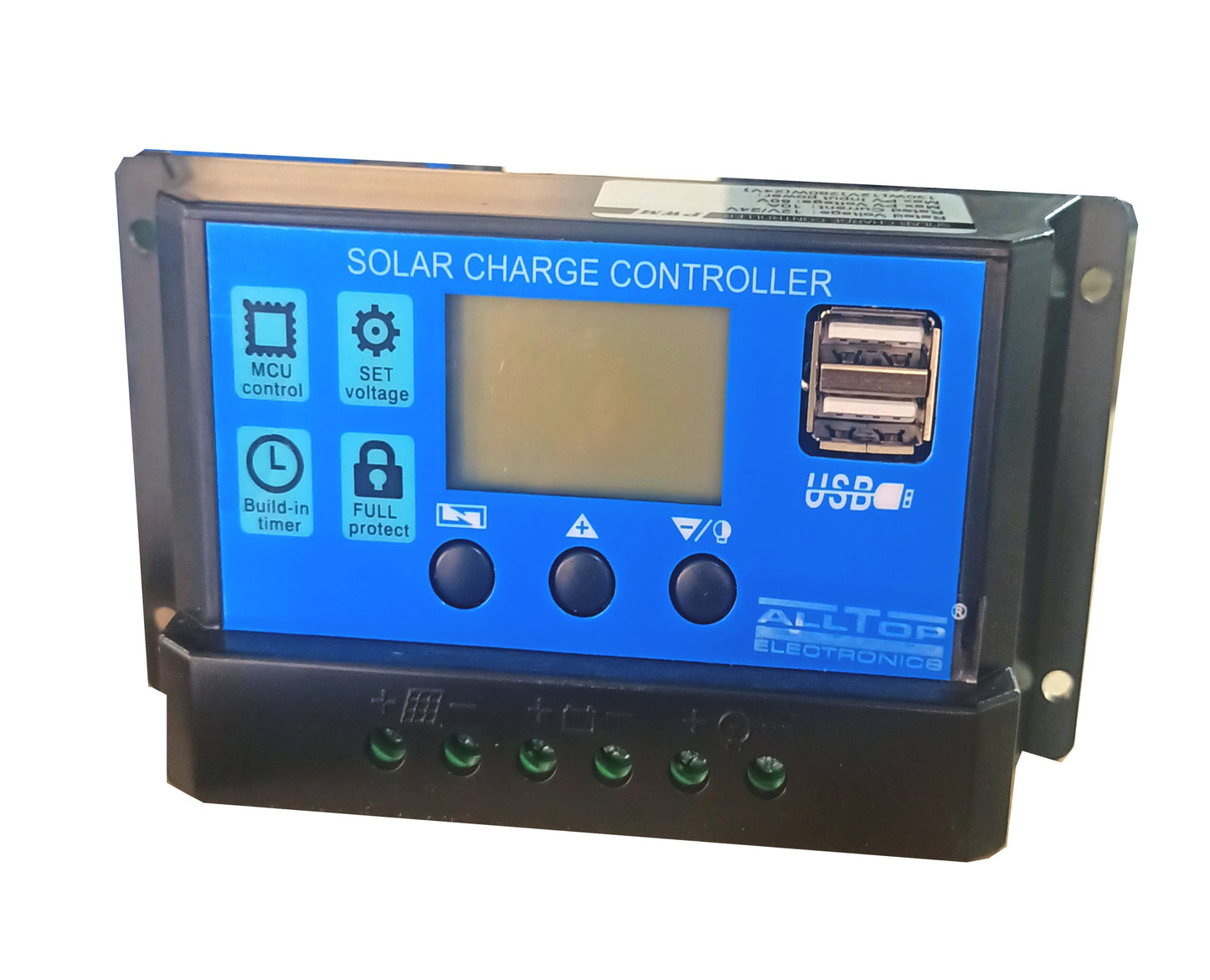

60A Solar Charge Controller

60A Solar Charge Controller

The 60A Solar Charge Controller is a professional-grade power manager designed to sit at the core of advanced solar installations. With a massive 60-Amp charging capacity, this controller can handle significantly more wattage than standard units, allowing you to connect multiple high-output panels in parallel or series. It is the go-to choice for systems requiring reliable daily power for heavy appliances like water pumps, large refrigerators, and power tools.

This controller features Universal Voltage Auto-Detection, meaning it intelligently configures itself for 12V, 24V, 36V, or 48V battery banks. The advanced MPPT (Maximum Power Point Tracking) technology—available in premium models—increases energy harvest by up to 30% compared to older PWM units, ensuring you get every possible watt out of your panels, even on cloudy days. Encased in a rugged metal shell with integrated cooling fans, it is built to perform in the warmest Kenyan environments without overheating.

Key Features & Specifications

• Rated Current: 60 Amps.
• System Voltage: Automatic detection for 12V / 24V / 36V / 48V.
• Max Solar Input Power: * 12V System: Up to 720W–800W.
• 24V System: Up to 1440W–1600W.
• 48V System: Up to 2800W–3200W.
• Max PV Input Voltage (Voc): Up to 150V–190V (model dependent), allowing for efficient high-voltage series strings.
• Efficiency: Peak conversion efficiency of up to 98%–99%.
• Battery Support: Pre-set profiles for Sealed, Gel, Flooded (Lead-Acid), and Lithium (LiFePO4) batteries.
• Cooling System: Intelligent temperature-controlled fans or heavy-duty aluminum heat sinks.
• Monitoring: Large backlit LCD screen showing real-time PV voltage, battery capacity, and charging current.
• Protection Suite: Includes over-temperature, short-circuit, PV reverse polarity, and battery overcharge protection.
