Solar Mounting L-Bracket (L-Foot)

Solar Mounting L-Bracket (L-Foot)

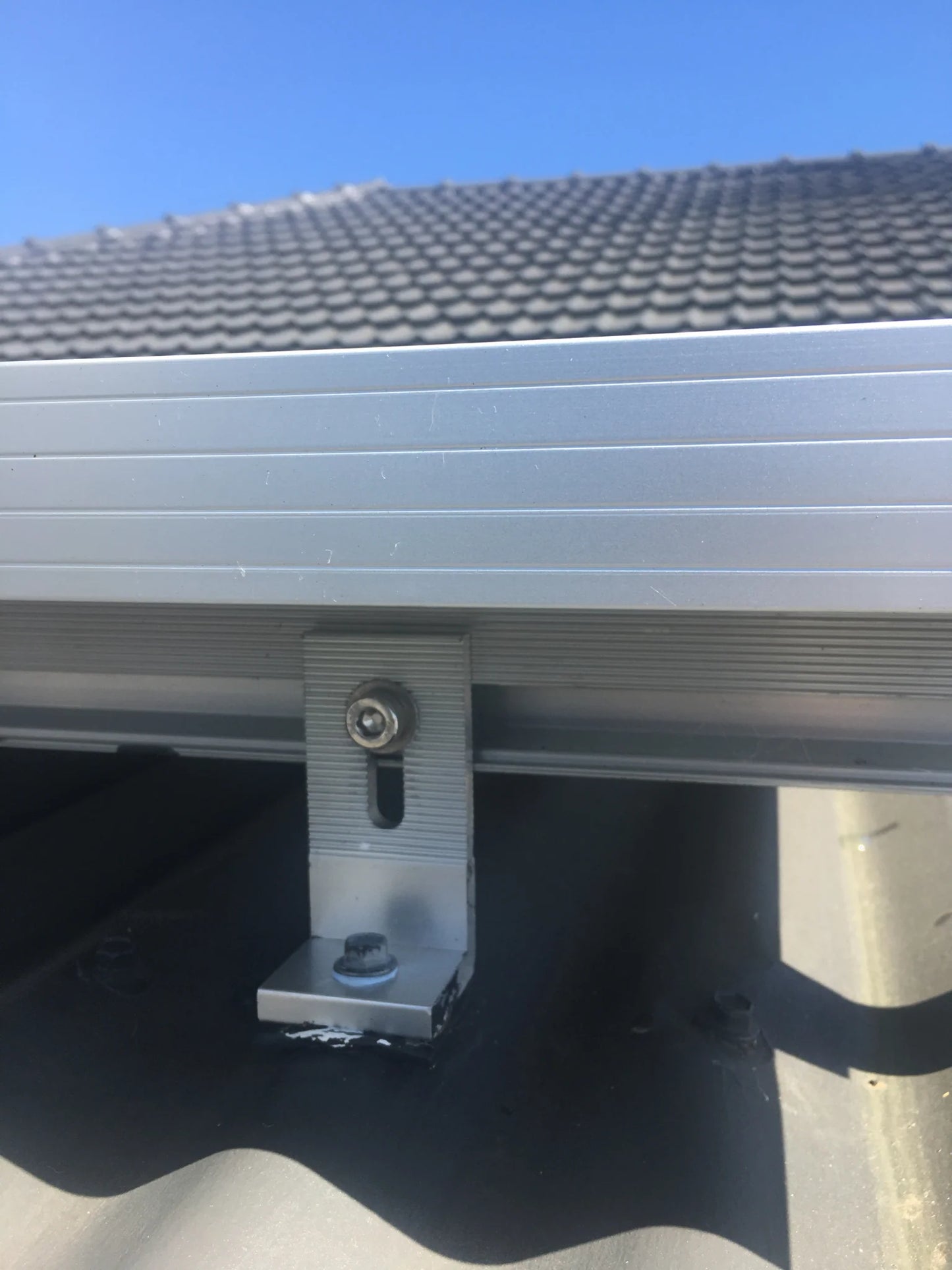

The Solar Mounting L-Bracket is the essential bridge between your roof and the solar racking rails. This L-shaped component is engineered to fasten directly into the roof's purlins or rafters, providing a rock-solid foundation for the aluminum rails that support your solar panels.

Crafted from high-grade Anodized Aluminium 6005-T5, this bracket is built to withstand the intense UV radiation and varied weather conditions of the Kenyan climate for over 25 years. Each bracket comes with an EPDM rubber pad that creates a watertight seal at the penetration point, ensuring your roof remains 100% leak-proof. Its adjustable "long slot" design allows for vertical height calibration, helping you achieve a perfectly level solar array even on slightly uneven roof surfaces.

Key Features & Specifications

·       Material: AL6005-T5 Anodized Aluminium (Rust-proof and high-strength).

·       Fasteners: High-quality SUS304 Stainless Steel bolts and nuts.

·       Waterproofing: Integrated EPDM rubber gasket for a durable, weather-tight seal.

·       Adjustability: Features a vertical slot for rail height adjustment (typically up to 85mm).

·       Roof Compatibility: Ideal for corrugated, trapezoidal, and tin/zinc roofs.

·       Wind Load Resistance: Built to handle high wind speeds up to 60m/s.

·       Rotation: Many models offer 360° rotation for maximum flexibility in rail placement.

·       Dimensions: Standard sizes typically include 40mm x 40mm x 80mm or 40mm x 80mm x 85mm.
